STAR-20S (12 mm to 20 mm) Heavy Duty Automatic Wire Straightening and Cutting Machine
The STAR-20S (12 mm to 20 mm) is a heavy-duty automatic wire straightening and cutting machine offered by STAR MACHINERY, Ahmedabad, Gujarat, India. Designed for processing MS plain wire within the 12 mm to 20 mm diameter range, this machine combines wire straightening, automatic feeding, sensor-based length control, and hydraulic cutting in an integrated production system.
The machine features a PLC control system with an HMI operator interface, a box-type conveyor for material collection, and a total installed power capacity of 27 HP. With a specified maximum operating speed range of 15–20 meters per minute, the equipment is intended for industrial wire processing operations involving heavier wire diameters.
STAR-20S Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | STAR-20S |
| Machine Type | Heavy Duty Automatic Wire Straightening & Cutting Machine |
| Wire Material | MS Plain Wire |
| Wire Diameter | 12 mm to 20 mm |
| Maximum Operating Speed | 15–20 m/min |
| Total Installed Power | 27 HP |
| Control System | PLC with HMI Operator Interface |
| Length / Cut Control | Sensor-Based Automatic Operation |
| Cutting Mechanism | Automatic Hydraulic Cutting System |
| Material Handling | Box-Type Conveyor System |
| Motor Manufacturer | Siemens (all motors) |
| Bearing Manufacturer | FAG |

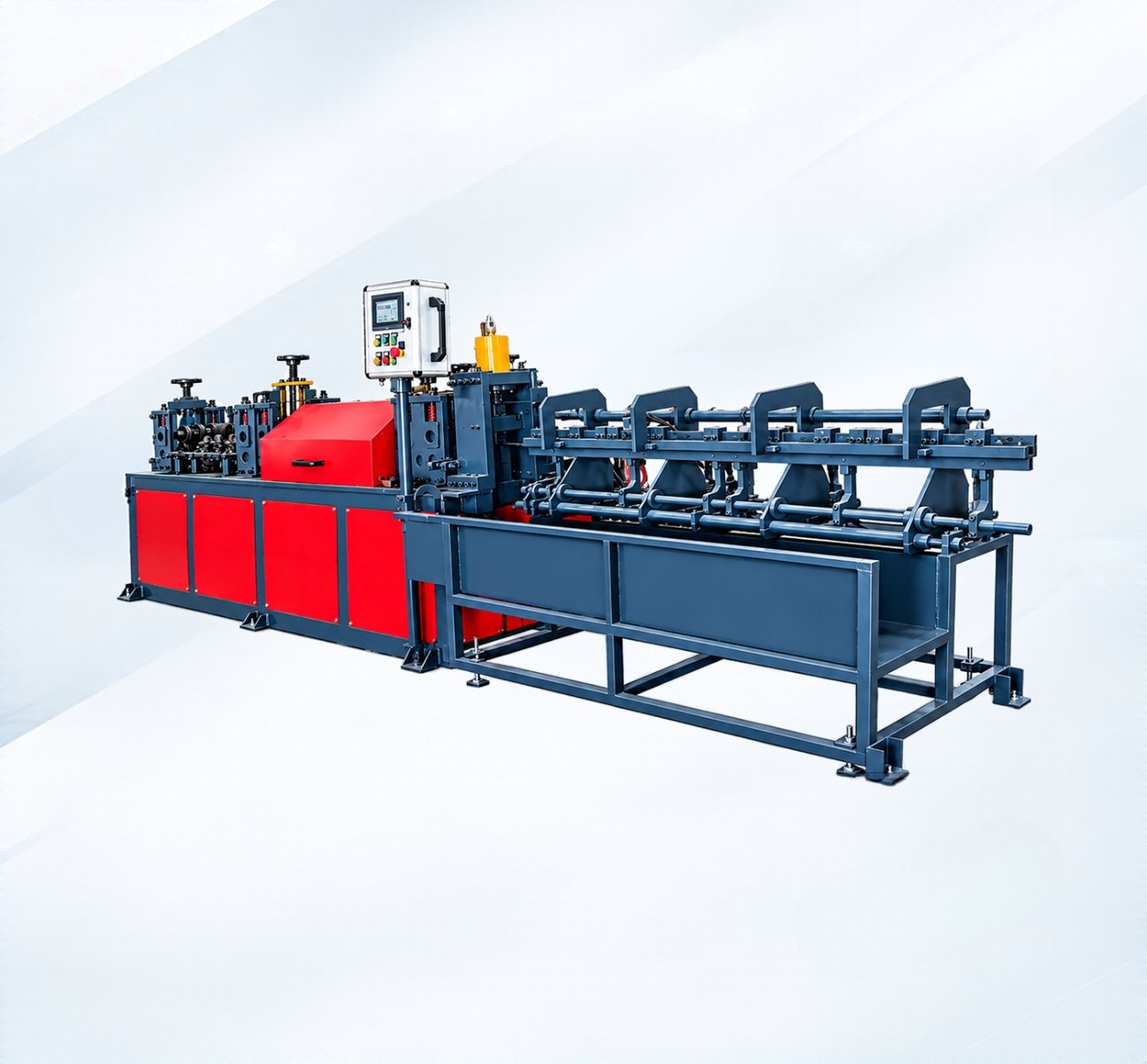

STAR-20S Machine Overview
The STAR-20S heavy-duty wire straightening and cutting machine is designed to process MS plain wire through a controlled automatic production sequence. The machine integrates wire guidance, straightening, feeding, length measurement, cutting, and material collection. Its PLC-based control system coordinates the operating process, while the HMI interface provides operator access to supported machine controls.
The automatic hydraulic cutting mechanism performs the cut-off operation, and the box-type conveyor supports the collection of processed wire. The machine is equipped with Siemens motors and FAG bearings, as specified in the manufacturer catalogue.

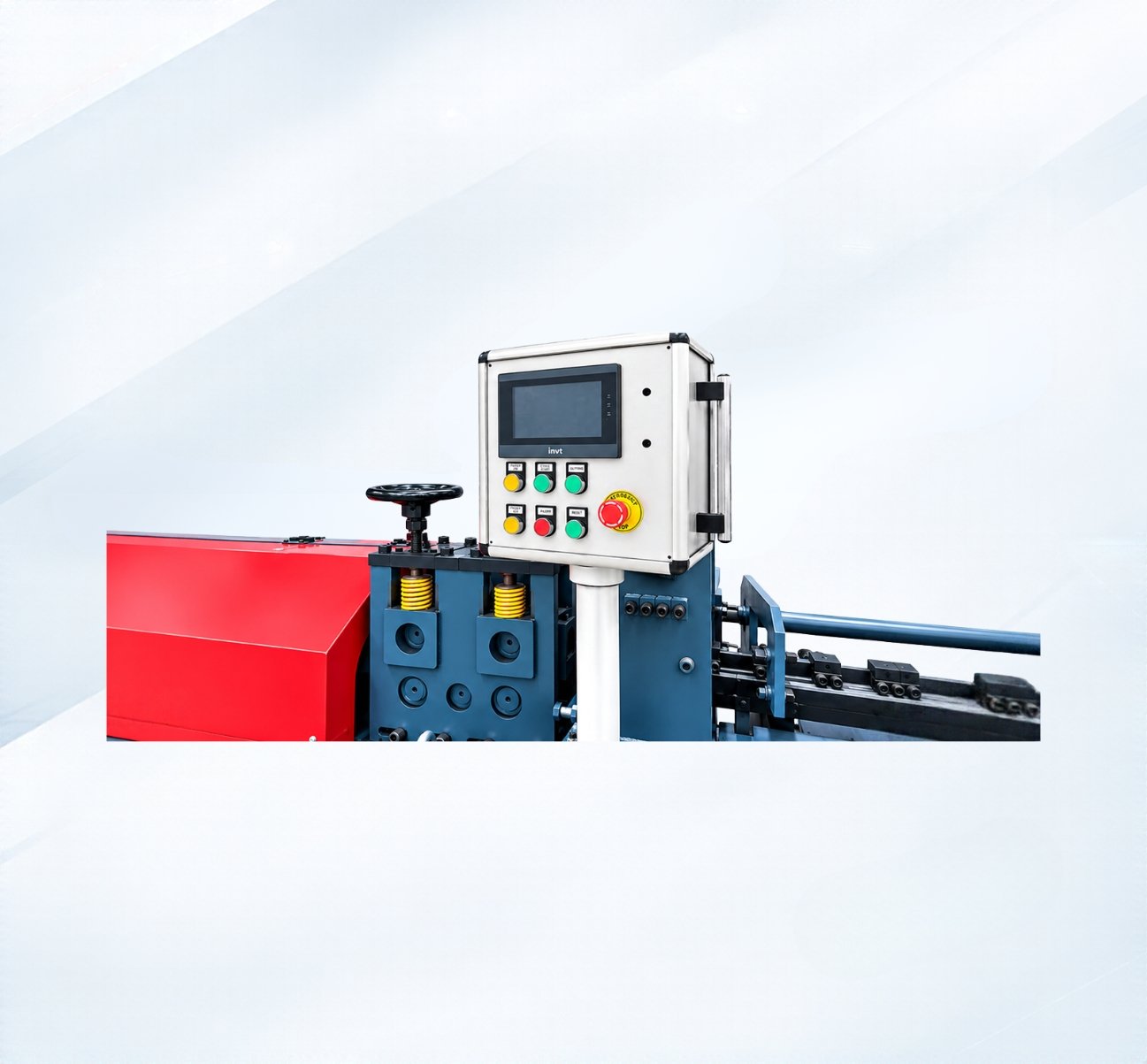

PLC & HMI Control
Automatic operation with an operator control interface.
Hydraulic Cutting
Automatic hydraulic cut-off for heavy-duty MS wire processing.
Box-Type Conveyor
Integrated material handling and collection arrangement.
General questions
The machine is specified for MS plain wire from 12 mm to 20 mm in diameter.
The manufacturer brochure specifies a maximum operating speed range of 15–20 meters per minute. Actual performance depends on material and operating conditions.
The machine uses sensor-based automatic length and cut control.
The machine uses an automatic hydraulic cutting system.
Contact STAR MACHINERY in Ahmedabad, Gujarat, India, to discuss your wire diameter, material grade, required cutting length, and machinery specifications.
